Building an AI Workflow: How to Chain AI Tools Into a System That Works

What Is an AI Workflow and Why Do Most Break?

Quick answer: An AI workflow is a repeatable pipeline that transforms an input into a verified output using AI at one or more stages. Most fail because they skip validation: bad data flows into the model unchecked, and bad outputs flow out without review.

Chaining AI tools sounds straightforward: send a prompt, get a response, pass it to the next step. But in practice, production pipelines face five failure modes that a demo never encounters:

1. No input validation. The first step receives malformed data — an empty field, an HTML blob instead of plain text, a date in the wrong format. The model processes it anyway and produces plausible-sounding nonsense.
2. No output validation. The model returns JSON with a missing field. The downstream step tries to parse it, fails silently, and inserts a null into your CRM. You discover the problem three weeks later during a data audit.
3. Context window overflow. A multi-step pipeline forwards the entire conversation history at each step. By step 6, there are 18,000 tokens in the prompt — and the instructions from step 1 are now beyond the model's effective attention range.
4. Rate-limit errors treated as success. An API returns a 429 Too Many Requests response. The output parser reads the error message as the AI's answer and stores "Error: rate limit exceeded" in the output field.
5. No observability. There are no logs, no traces, no alerts. The first signal that something is wrong is a user complaint, not a monitoring alert.

These failures share a root cause: the pipeline was designed as a happy path — the sequence of steps that works when everything goes right — and never as a system that must degrade gracefully when anything goes wrong. The architecture choices that prevent these failures are the subject of this article.

For a broader view of how AI tools can be deployed across a business, see our guide to AI for operations automation. For the strategic context of where AI workflows fit in a business adoption programme, read the AI implementation roadmap.

The Input → Process → Validate → Output Pattern

Quick answer: Every reliable AI workflow follows four stages: Input (clean and validate incoming data), Process (call the model with a structured prompt), Validate (check the output meets your requirements), Output (deliver verified results downstream). The two validation gates are what distinguish production systems from demo scripts.

The Input → Process → Validate → Output (IPVO) pattern is the structural foundation of every durable AI pipeline. Here is what each stage requires in practice:

Stage 1: Input

Before any data reaches the model, it must be sanitised and validated. This means:

• Strip HTML, markdown artefacts, and encoding issues from raw text inputs.
• Verify required fields are present and non-empty.
• Normalise formats — dates to ISO 8601, currencies to a consistent symbol.
• Truncate or chunk inputs that would exceed your context budget. (Reserve at least 20% of the context window for the model's output.)

Stage 2: Process

The AI processing stage is where most attention goes and where it matters least, because the other three stages are what determine reliability. That said, the process stage has its own constraints:

• Use a structured prompt with explicit output format instructions. If you need JSON, specify the schema in the prompt and use a constrained-decoding output parser, not free-text parsing.
• Set temperature to match your task. Extraction and classification: 0.0–0.2. Summarisation: 0.3–0.5. Creative generation: 0.6–0.8. (See the prompt engineering patterns guide for full calibration guidance.)
• Pass only the context the model needs — not the full history of prior steps.

Stage 3: Validate

Output validation is the single most underused element in AI pipelines. Implement at minimum:

• Schema validation: Does the output match the expected structure? Use Pydantic (Python), Zod (TypeScript), or JSON Schema validation libraries.
• Completeness check: Are all required fields present and non-null?
• Confidence/relevance check: For extraction tasks, does the model express high confidence? For classification, is the predicted class above a minimum probability threshold?
• Retry with clarification: If validation fails, retry the process step with additional instructions explaining what went wrong — not with the same prompt that already failed.

Stage 4: Output

Deliver validated results to the next system — a database write, an API call, a notification, or another workflow step. At this stage:

• Log the input, the model's raw output, the validation result, and the delivered output for every run. This log is your debugging foundation.
• Emit a structured event (e.g., to a monitoring platform) so failures surface in dashboards, not user complaints.
• For irreversible actions (database writes, sent emails, external API calls), add a human checkpoint before this stage — covered in detail in the Human-in-the-Loop section below.

The analogy that clarifies why validation matters: think of the model as a capable-but-imperfect colleague who occasionally misreads the brief. You would not let that colleague send a client email without a review. The same discipline applies to AI output in any workflow where mistakes have consequences.

Tool Chaining: LangChain, n8n, Zapier, and Make Compared

Quick answer: For developers building custom pipelines with full control: LangChain/LangGraph. For power users who want a visual interface with self-hosting: n8n. For non-technical teams connecting SaaS apps: Zapier. For complex multi-step logic with branching: Make. There is no single best tool — the right choice depends on who will build it and how much customisation the AI layer requires.

The four leading platforms for AI workflow construction sit at different points on the code-vs-no-code spectrum:

When the code-vs-no-code choice matters most: If your AI step requires a custom prompt strategy, retrieval from a private knowledge base, or logic that branches on the model's output in complex ways, you will eventually hit the ceiling of visual no-code tools. The correct approach is often a hybrid: use LangChain or a custom API call for the AI layer, then pipe results into Zapier or n8n for the downstream SaaS integrations where your non-technical colleagues need to maintain the workflow.

The key constraint to keep in mind with no-code AI tools is output format rigidity. Most Zapier and Make AI modules return free-text output. If your downstream step needs structured data — a name, a category, a numerical score — you will need to add a parsing step. In LangChain or n8n, you can enforce structured output with Pydantic models or JSON Schema constraints natively.

Human-in-the-Loop: Where to Add Checkpoints

Quick answer: Add a human checkpoint before any irreversible action (sending email, posting to external systems, writing financial records), any output above a financial or reputational risk threshold, and any decision with legal or medical implications. Everything else can flow automatically — but those three categories should always have a review step.

The purpose of human-in-the-loop (HITL) is not to babysit the AI — it is to add human judgement precisely where the consequences of AI error are highest. Correctly scoped, HITL increases trust without becoming a bottleneck. The decision framework:

Implementation with LangGraph: LangGraph's interrupt() mechanism is the standard approach for developer-built workflows. It pauses the graph at a defined node, stores the current state, and emits a notification (via webhook, Slack, or email) requesting human input. When the reviewer approves or edits the output, execution resumes from the checkpoint with the updated state. This is preferable to building approval loops manually because LangGraph handles state persistence across the pause automatically — the workflow does not need to restart from scratch.

For no-code tools: In Zapier and Make, implement HITL by routing the AI output to a Google Form, Typeform, or Slack approval workflow before the action step fires. The workflow pauses on the form submission trigger. This is slightly more manual but achieves the same result without code.

Threshold-based automation: A practical middle ground is to apply HITL conditionally based on a confidence score. If your validation step returns a confidence metric (e.g., the model's log probability for a classification, or a secondary LLM-as-judge score — see the AI output evaluation guide), route high-confidence outputs automatically and flag low-confidence outputs for human review. This gives you full automation 80–90% of the time while preserving human oversight for the cases that need it.

Debugging AI Pipelines: Finding the Failure Point

Quick answer: Isolate the failure stage by testing each step in isolation. The most common failure points are: (1) bad input data, (2) prompts that don't handle edge cases, and (3) output parsers that fail silently when the model returns an unexpected format. Use a tracing tool like LangSmith to record every input/output at each node so you can replay failures without guessing.

When an AI workflow produces wrong results, most teams start by re-prompting — changing the instructions to the model. This is the wrong starting point 60–70% of the time. The actual failure is usually in the input or the parser, not the model. A more systematic debugging approach:

Step 1: Identify the stage, not the symptom

Run the failing input through each stage of your pipeline independently. Check:

• Input stage: What did the model actually receive? Log the full prompt (with substituted variables) before the API call. Is the data clean and correctly formatted?
• Process stage: What was the raw API response? Was it a 200 with valid JSON, a 429 rate limit, a 500 server error, or a 200 with an error message embedded in the text?
• Validate stage: What did your parser receive? Did it fail, and if so, at which field? Was the failure surfaced as an error or silently caught?
• Output stage: What was actually written to the downstream system? Does it match what you expected from the validate stage?

Step 2: Use a tracing tool

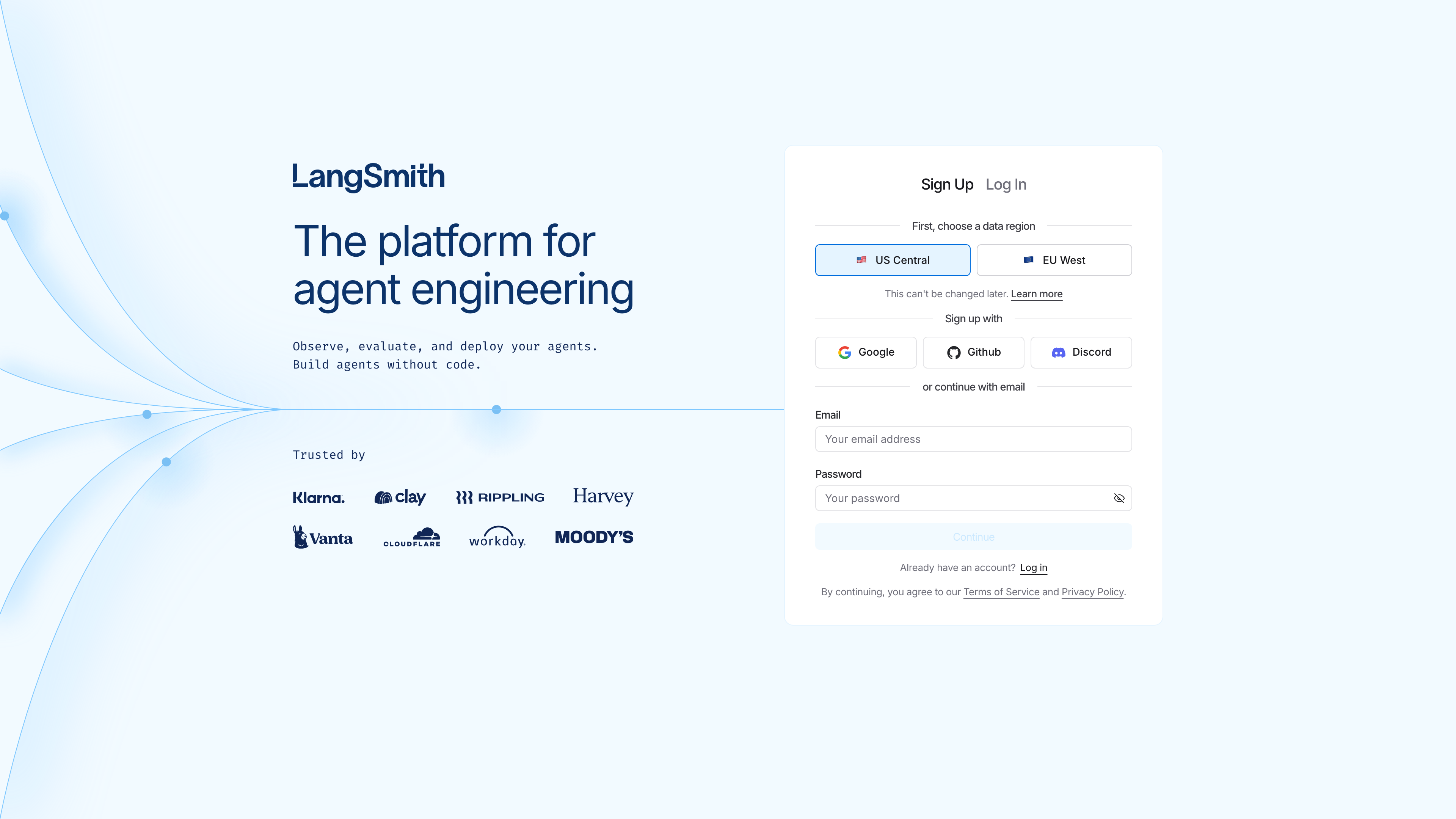

LangSmith provides full trace logging for LangChain pipelines — every node records its inputs, outputs, token counts, latency, and errors in a searchable UI. For n8n, the execution history UI shows per-step input/output for every workflow run. For custom code pipelines without a framework, implement structured logging with a correlation ID (a UUID generated at workflow start, passed through every step) so you can reconstruct the full execution trace from logs.

Step 3: Test with the minimal failing case

Once you identify the failing stage, reduce the input to the smallest example that reproduces the failure. This isolates whether the problem is specific to one data pattern or a general bug. Minimal reproducible cases are also the correct way to file issues with framework maintainers or to ask for help in community forums.

"The most expensive debugging sessions we see are from teams that change the model or the prompt when the actual bug is in the input cleaning layer. Trace first, then act." — LangSmith team, observability best practices documentation

Common failure patterns and fixes

Real-World AI Workflow Examples That Work

Quick answer: The most reliably productive AI workflows in business settings are: email triage and draft, document extraction to structured data, support ticket routing and classification, and content summarisation pipelines. These work because they have well-defined inputs, structured output formats, and clear validation criteria.

Workflow 1: Email Triage and Response Draft

Input: Raw email text + sender metadata. Validate input: Confirm non-empty, below 4,000 tokens. Process (Step 1): Classify email category (sales inquiry, support request, complaint, spam) and urgency (high/medium/low). Validate output 1: Confirm category is one of the defined enum values. Process (Step 2, conditional): If category = support and urgency = high, draft a response using the company knowledge base. Validate output 2: Check response length is 100–400 words; confirm it does not contain hallucinated product names. HITL checkpoint: Route draft to support agent via Slack for review. Output: Agent clicks approve → email sends; clicks edit → opens draft in email client.

Why it works: The two-step process (classify first, draft second) is more reliable than a single step that attempts both. The classification step is simpler and higher-confidence; the drafting step receives a richer context (category + urgency + knowledge base) because of it.

Workflow 2: Document Extraction to CRM

Input: PDF invoice or contract (OCR to plain text). Validate input: Check OCR quality score above threshold; flag poor-quality scans for manual entry. Process: Extract structured fields (vendor name, date, total, line items) using function calling with a defined JSON schema. Validate output: Pydantic schema validation; check total matches sum of line items within 1% tolerance. Output: Write validated fields to CRM via API; log raw extraction and validation result; flag discrepancies for finance review.

Why it works: Function calling forces the model to return structured JSON rather than free text, eliminating parser failures. The mathematical validation (total = sum of line items) is a deterministic check that catches hallucinated numbers without requiring another AI call.

Workflow 3: Support Ticket Routing

Input: Support ticket text. Process: Classify into routing category (billing, technical, account, general) with confidence score. Validate: Confidence > 0.85 → auto-route; confidence 0.60–0.85 → route with confidence warning; confidence < 0.60 → route to general queue for human assignment. Output: Assign ticket to correct queue in helpdesk; set priority tag; log classification and confidence.

Why it works: The confidence-based routing is the key design decision. Automating 100% of classifications will produce a routing error rate of 5–15% for ambiguous tickets; routing the ambiguous 20% to humans reduces errors to near-zero while maintaining 80% automation. See the operations automation guide for more workflows in this pattern.

For a comprehensive overview of where AI workflows fit in a business transformation programme, the AI for business complete guide maps all deployment areas and maturity levels.

5-Step AI Workflow Build Checklist

Frequently Asked Questions

aicourses.com Verdict

The gap between AI workflows that work in demos and those that hold up in production is almost entirely architectural, not model-related. The teams that ship reliable AI pipelines do the unglamorous work first: they clean inputs, validate outputs, log every run, and add human checkpoints for anything irreversible. The teams that struggle skip these steps in the name of speed and spend the next three months debugging intermittent failures they cannot reproduce.

The IPVO pattern — Input, Process, Validate, Output — is simple enough to write on a sticky note and powerful enough to prevent 80% of production failures. Apply it to every workflow step, even simple ones. An output validation that takes 50 lines of code to implement will pay back that investment the first time the model returns an unexpected format at 2am on a Sunday.

For tool selection: start with the lowest-complexity tool that meets your requirements. If your team is non-technical, Zapier or Make will get you to a working workflow in an afternoon. If you need custom AI logic, try n8n before jumping to raw LangChain — the visual canvas accelerates debugging significantly. Reach for LangChain when you need agent reasoning, RAG, or fine-tuned model integration that no-code tools cannot accommodate cleanly.

The next article in the Applied AI Skills cluster examines the cost structure that underlies these workflows — specifically, the pricing model surprises that affect every team running AI at scale: the practical AI guide covers the full landscape, and our AI ROI calculator guide helps you model the business case before committing to a workflow investment.
